Pre-requisites
- Valid Splashtop team setup with unattended Android remote support feature enabled
- Splashtop Streamer v3.5.5 and up
- Splashtop Addon: Samsung (Knox) v3.5.9 and up
The following are the steps to finish zero touch deployment of Streamer on Samsung devices with AirWatch Workspace ONE UEM console:
Step 1: Create deployment package in Splashtop management portal
Log in my.splashtop.com with team admin, and go to Management > Deployment, click Create Deployment Package button to create a valid deployment package, it will generate a deploy code for every package, which is necessary for following steps. Refer to this page to learn more about different deployment package parameters.

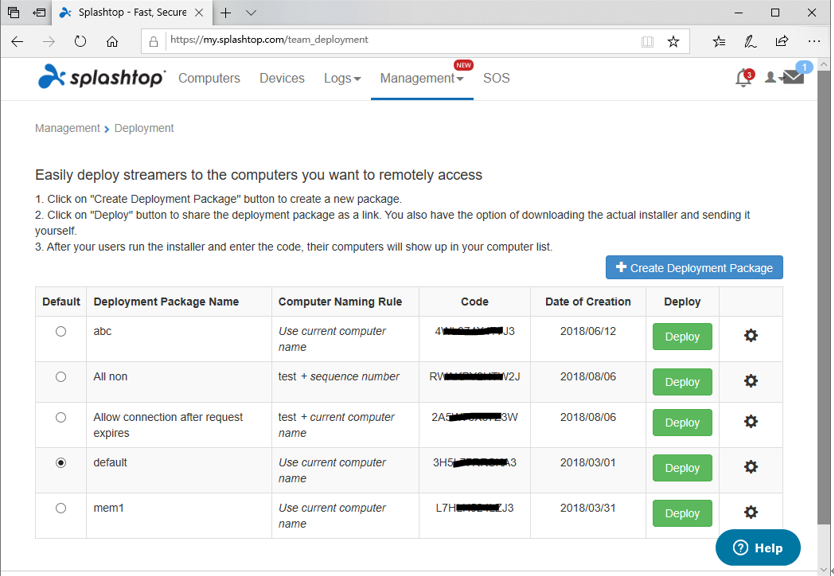

Example deployment package management page
Step 2: Push installation of Streamer and Knox add-on
After finishing your Android EMM registration on the console, approve and add Splashtop Streamer, Spalshtop Addon: Samsung (Knox) , and push installation to target devices:

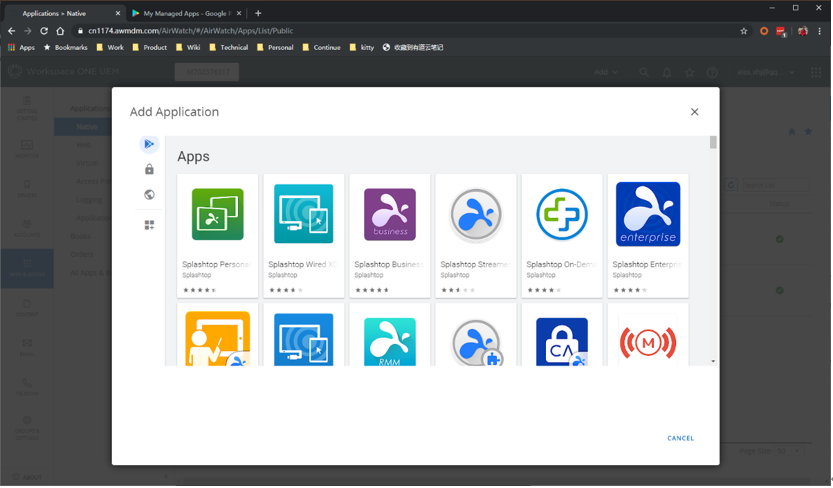

(2-1) Select Platform as "Android", and type Splashtop Streamer to get the app. It will list out Splashtop Streamer as the search result.

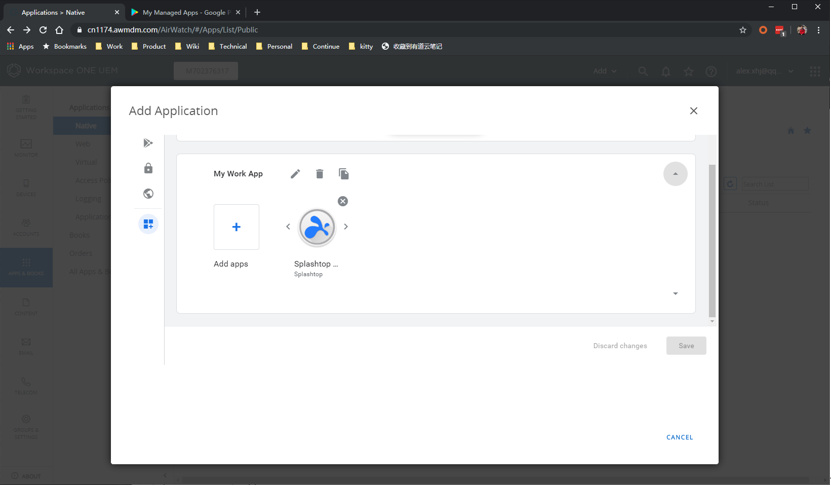

(2-2) Select Splashtop Streamer, it will prompt Approve, and also update policies on app's permission change etc. finally, it will appear in the "organize apps" like the following screenshot.

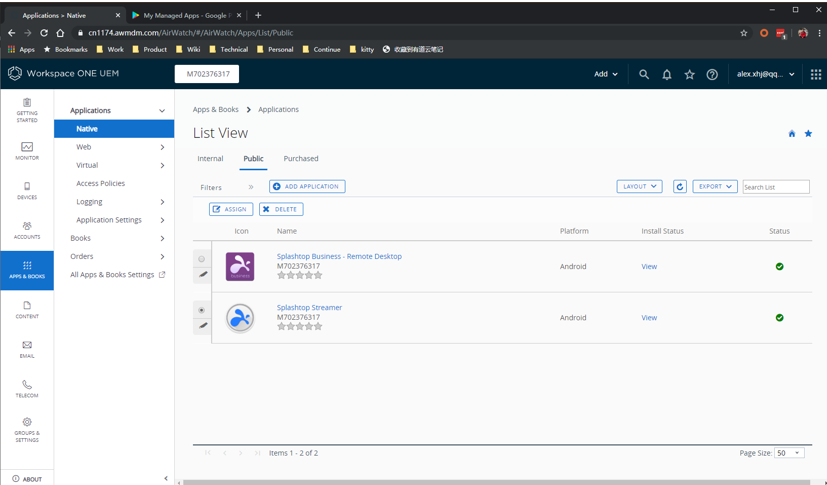

(2-3) Now you can go to Application list view, select the Splashtop Streamer app (radio button before the app), and Assign button appears above the application list.
(2-4)Grant app permissions to Splashtop Streamer
In order to make Splashtop Streamer works correctly, you may grant those required permissions to it. You can do this by following steps.
1) go to Devices > Profiles & Resources > Profiles, you can create a profile as you need
2) In the profile editing page, go to Permissions, in the right pane, search Splashtop Streamer, and click Configure. once finish configure, you can save and publish the profiles to the devices.
(2-5) Click Assign, it will show Assignment pop, either Add Assignment to add a new assignment or Edit an existing assignment.
Step 3: Push necessary managed configuration parameters to target devices

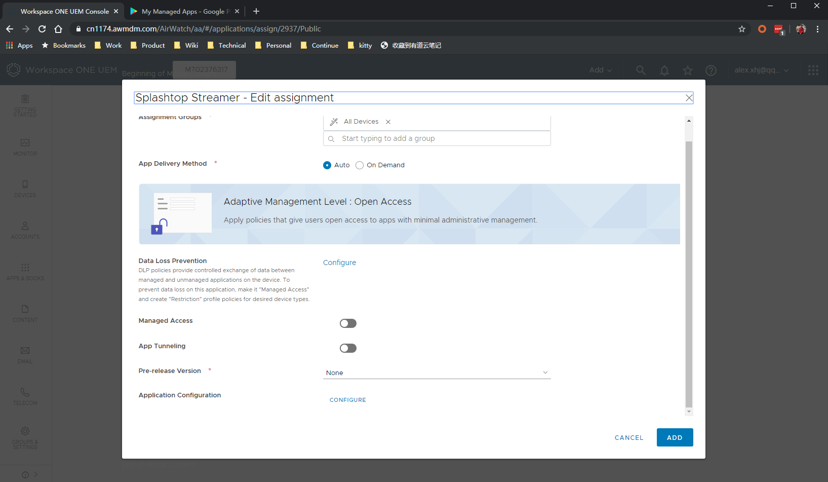

In the following edit screen, select Assignment groups as you wish to push configuration to, and scroll down to the bottom to Application Configuration section.
Example App Configuration of Streamer in AirWatch
Splashtop Streamer
Configure the following managed configuration parameter and leave other field blank.
| Key | Name | Type | Value |
| MDM_DEPLOY_CODE | Deploy Code | String | Input the deploy code generated in step 1 |
Splashtop Addon: Samsung (Knox)
Configure the following managed configuration parameters.
| Key | Name | Type | Value |
| MDM_AUTO_KNOX_ENABLE | Activate knox automatically | Bool | Set it to enable |
| MDM_SCREEN_CAPTURE_MODE | Screen capture mode | String | Set it to Knox built-in screen capture |

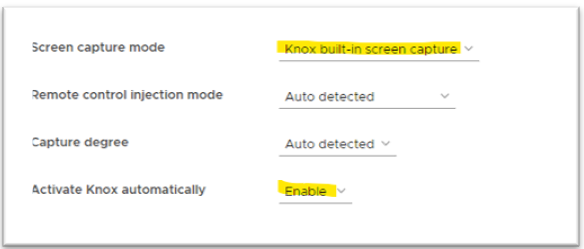

Example App Configuration of Addon in AirWatch
Step 4: Launch Streamer remotely

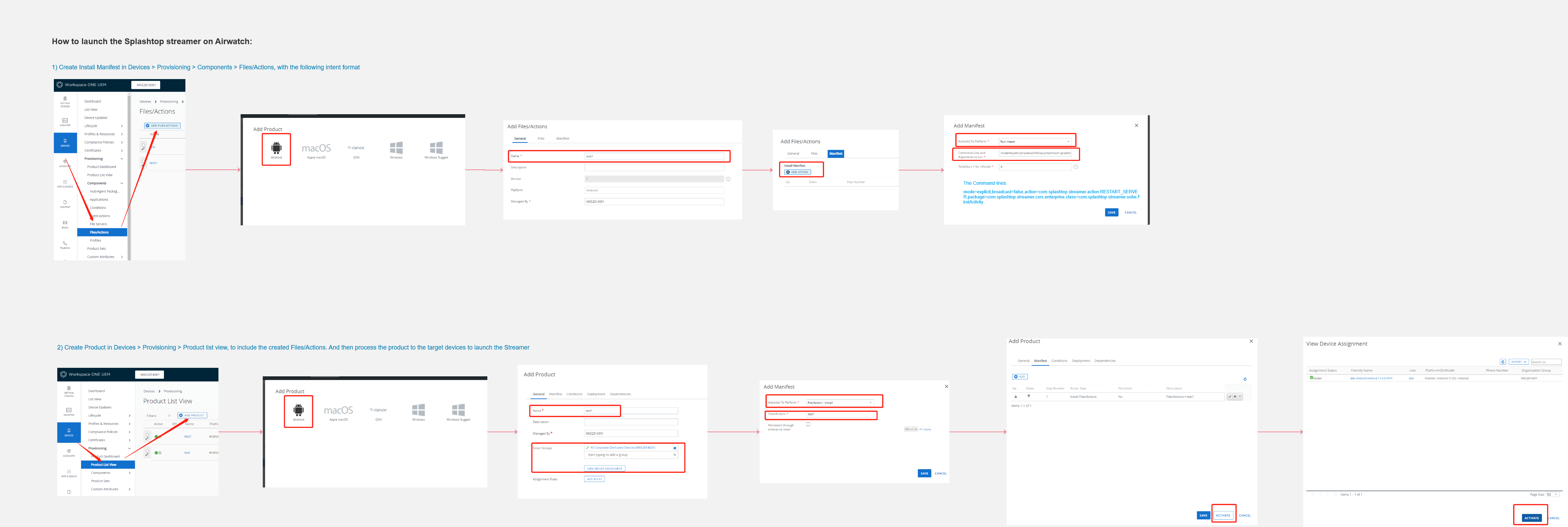

You can launch the Streamer remotely with AirWatch console, for example, the following is the steps to launch Streamer in AirWatch through Files/Actions:
(4-1) Create Install Manifest in Devices > Provisioning > Components > Files/Actions, with the following intent format
mode=explicit,broadcast=false,action=android.intent.action.MAIN,package=com.splashtop.streamer.csrs,class=com.splashtop.streamer.oobe.FirstActivity
(4-2) Create Product in Devices > Provisioning > Product list view, to include the created Files/Actions
(4-3) Process the product to the target devices to launch the Streamer:
